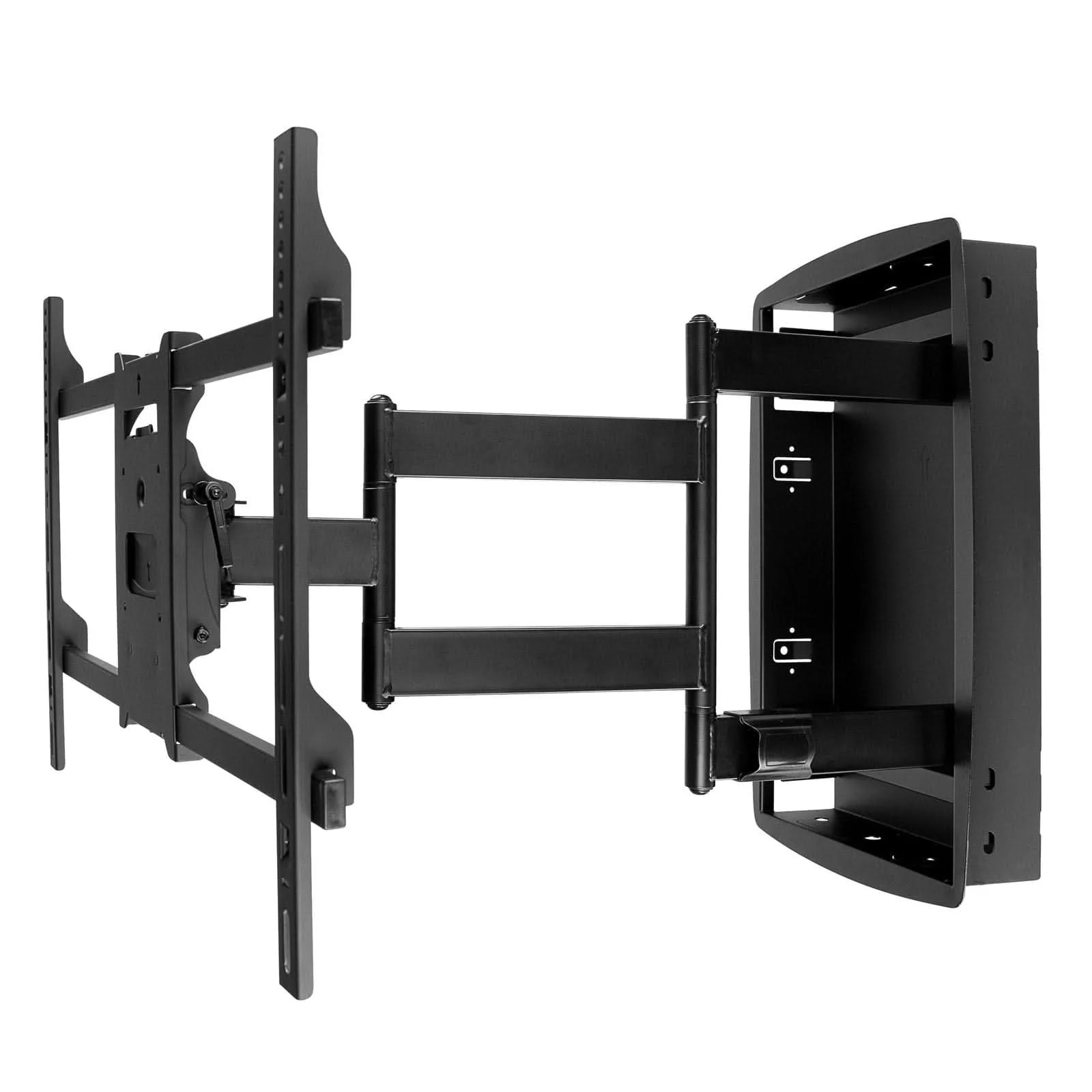

Heavy Duty Full Motion TV Wall Mount with Long Extension and Recessed Base

• MI-381 fits TVs with VESA patterns from 200x200mm to 600x400mm, screens up to 70″, and holds up to 175lbs
• Recessed mounting bracket allows your TV to sit flush against the wall

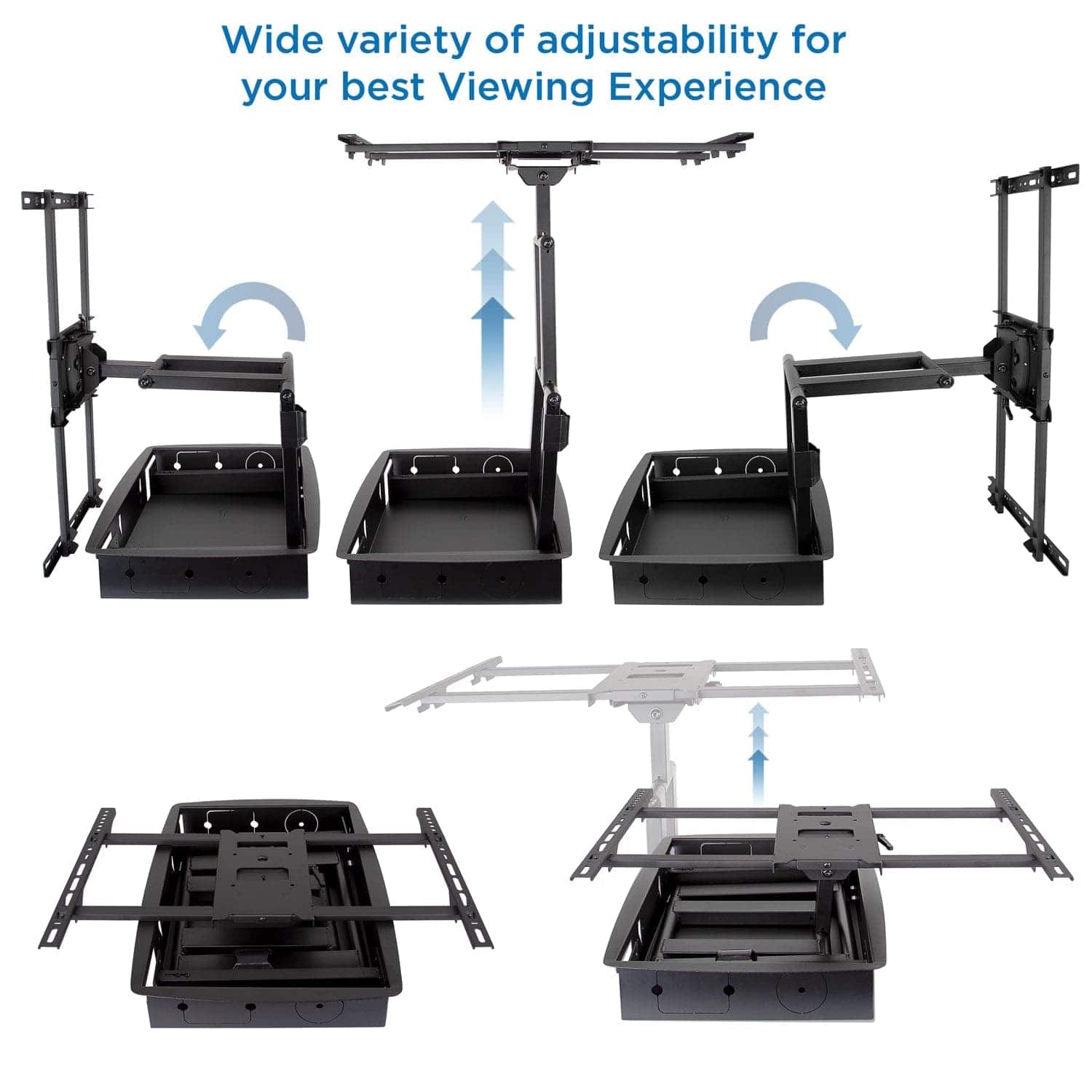

• Full motion mount can tilt, swivel and extend for the perfect positioning

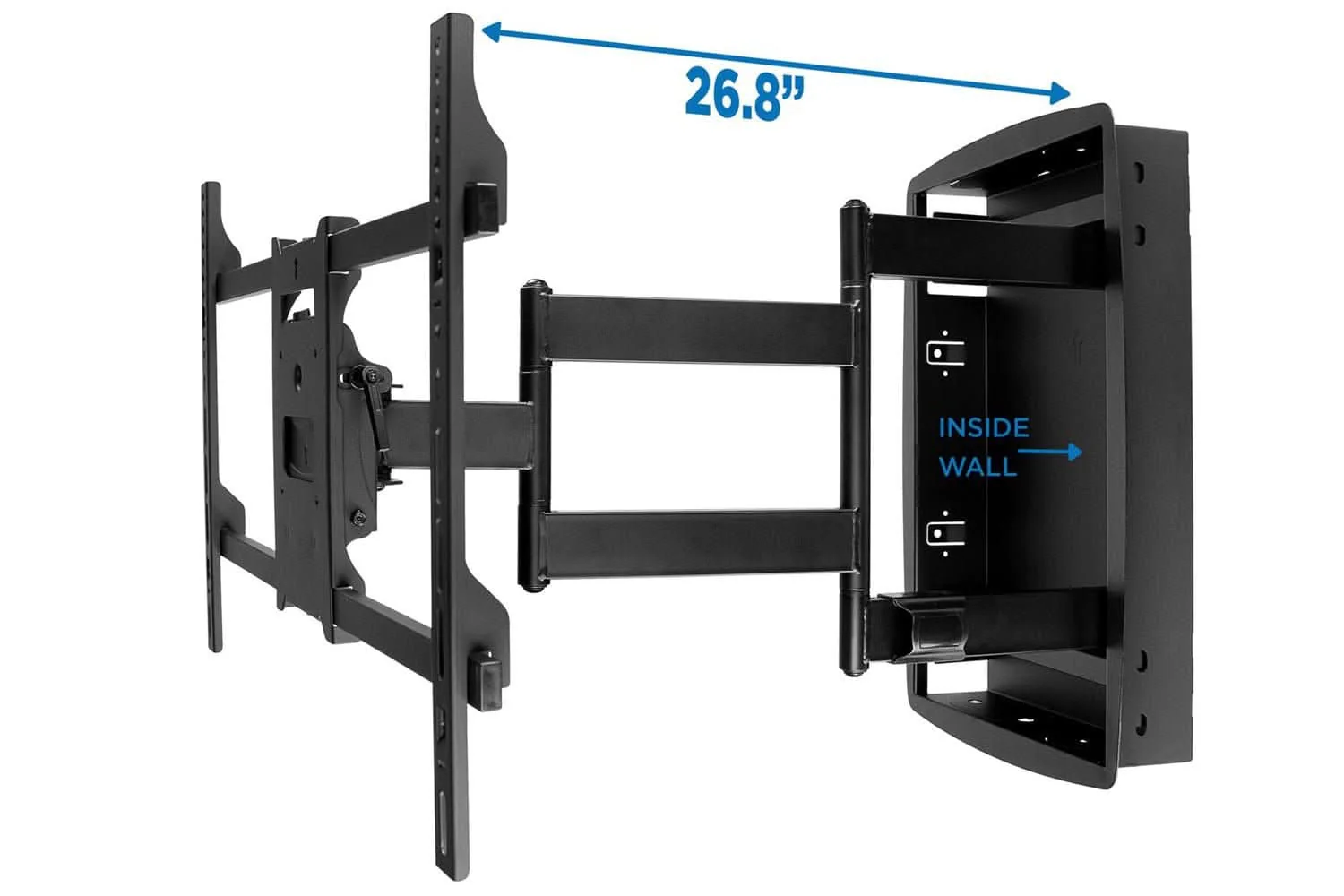

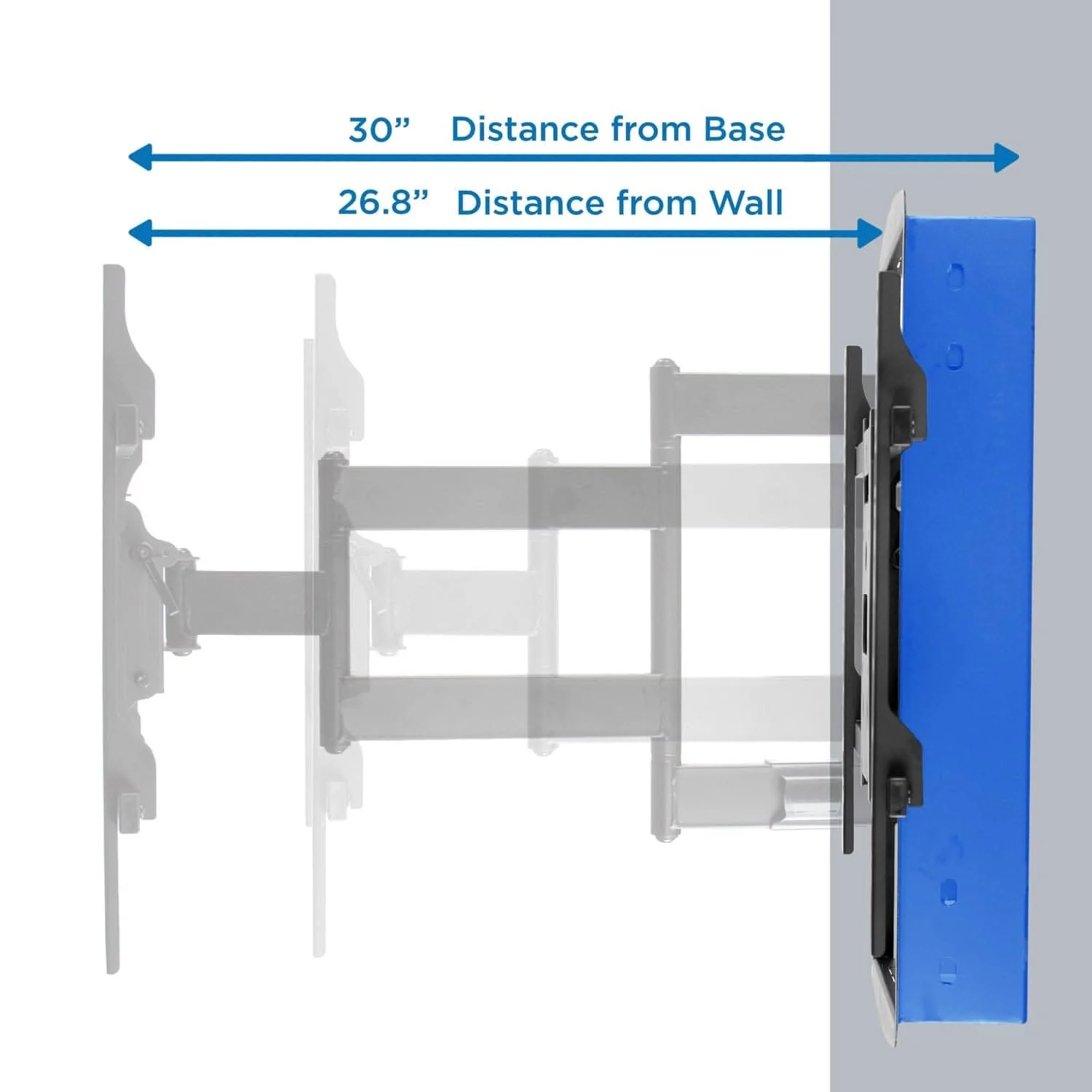

• Sturdy extension up to 26.8″

Overview

A TV wall mount with both full motion capabilities and an ultra low-profile design. The recessed wall mount fits between standard 16″ studs and safely and securely mounts to the inside of the studs. It can safely extend up to 26.8″ for a perfect view from anywhere in the room. Utilize the tilt and swivel functionalities to create the ultimate viewing experience.

Specifications

• Supports TVs 32″-70″
• Weight Capacity: 175lbs
• Tilt: 15 degrees down, 5 degrees up
• Swivel: 180 degrees
• Extension: 0″ minimum to 26.8″ maximum
• Fits between 16″ studs

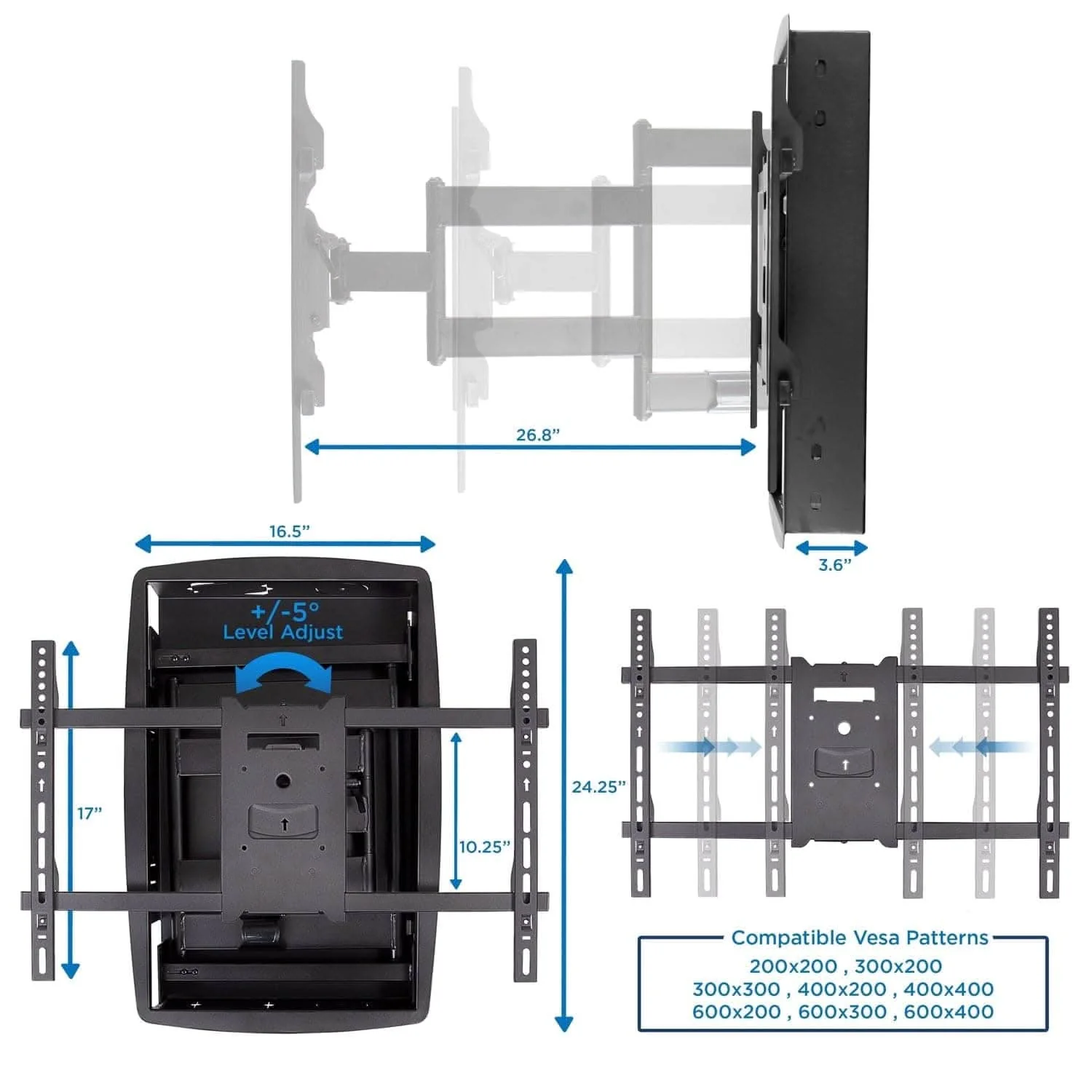

• VESA 200x200mm, 300x200mm, 300x300mm, 400x200mm, 400x400mm, 600x200mm, 600x300mm, 600x400mm
• Package includes wall mount, installation hardware, easy-to-follow installation instructions

* Installation requires an opening inside the wall (22.1″ H x 14.5 W x 3.5″ D)
